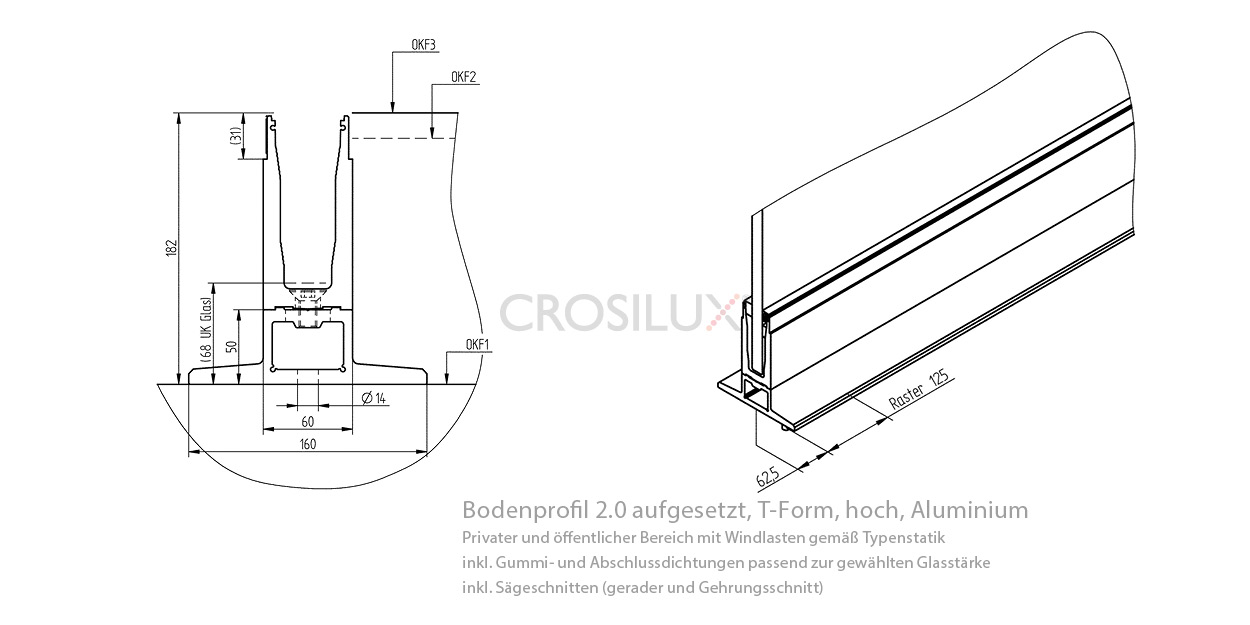

SET 4 = Floor profile attached, T-shape, high, aluminium, for selectable covers for private and public areas with wind loads in accordance with type statics
, beam load = 2.0 KN/m,
fall protection glazing (AbP, statics, ball impact resistance),
for various glass thicknesses,
including rubber and end seals suitable for the specified glass thickness,
including saw cuts (straight and mitre cuts) according to ISO 2768-g
Price/m
OKF = possible upper edges of floor structures
UK = lower edge
Colour deviation of the anodisation according to DIN 17611 possible
The holes for fastening to the lower profile and for fastening to the floor are offset.
Recommended fastener for substrate with minimum requirement: FAZ II 12/10 A4
Explanation of terms: AbP
Automated translation via DeepL AI. Only the German product description is legally binding.
| Available Options: |
| glas thickness: |
|
| Surface / Optical: |
|
Pics:
|
